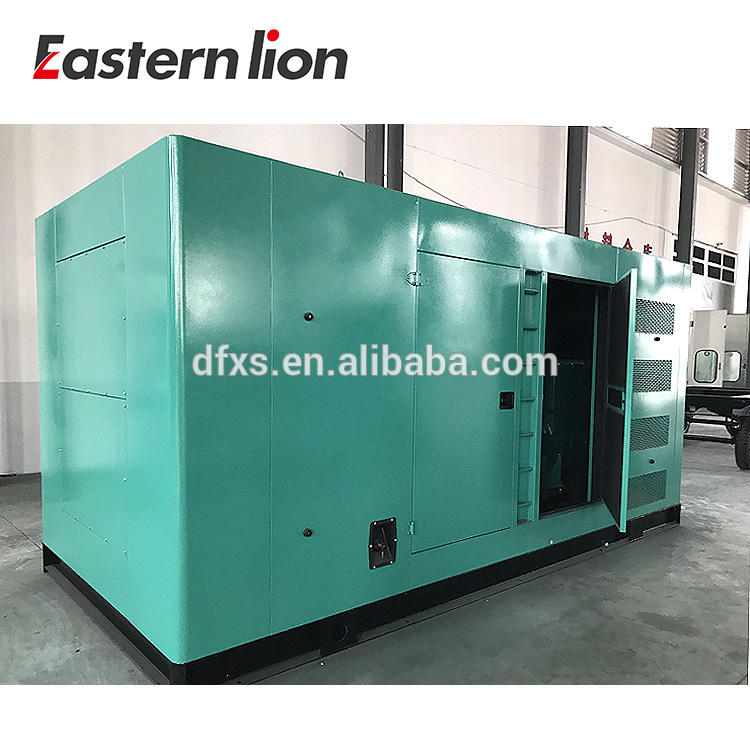

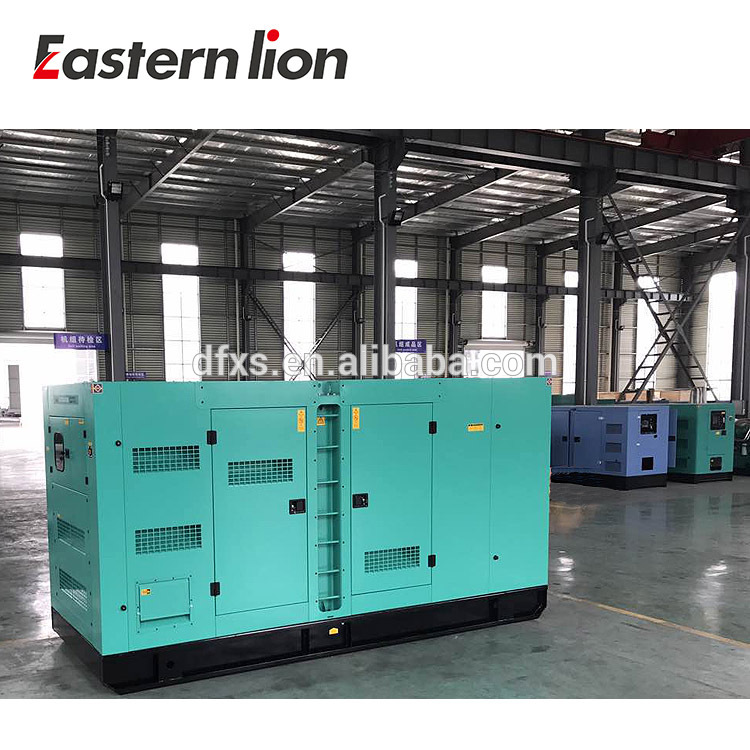

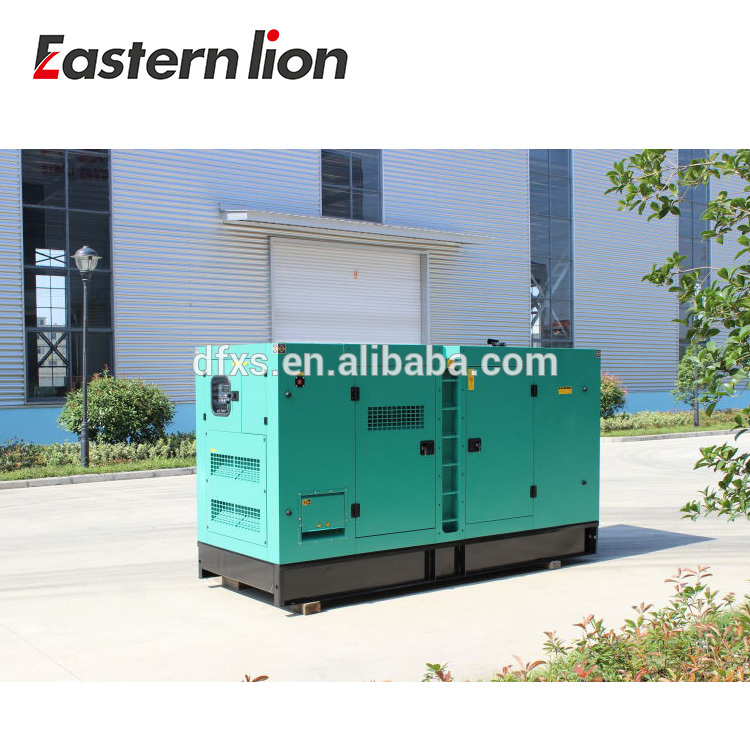

| 200KVA 160KW DCEC COMMINS Silent diesel generator set | |||
| Super Silent Diesel Generator Set | |||
| Genset | GFS-C160 | Prime Power(KW) | 160 |
| Engine | 6CTAA8.3-G2 | Prime Power(KVA) | 200 |
| Alternator | EL 274H | standby Power(KW) | 176 |
| Frequency(Hz) | 50 | standby Power(KVA) | 220.0 |
| Phase/Voltage | 3 phase/400v/230v | N.W(kg) | 2200 |
| Rated Current | 288 | Size(L*W*H)mm | 3500*1400*1730 |
| Qty/20FCL | 1 | Qty/40HQ | 3 |
| Engine | |||
| Brand/Original | DCEC Commins | Type | 4-Stroke,V In-line,Water Cool, Electric start |
| Item No. | GFS-C160 | Cylinder No. | 6 |
| Displacement(L) | 160 | Bore and Stoke(mm) | 114*135 |
| Prime power(KW) | 183 | Volume of Oil (L) | 28 |
| Prime power(KVA) | 228.75 | Combustion | Direct Injection |
| Fuel Consumption(g/kw/h) | 207 | Aspiration Type | Turbocharged and air-to-air aftercooled. |
| Governor | Electric Governor | Radiator Water Tank | 50℃ |
| Alternator | |||
| Brand/Original | Eastern Lion | Efficient | 92% |
| Alternator Model | 6CTAA8.3-G2 | A.V.R | SX460 |
| Type | Brushless sel-excited | protection | IP23 |
| Prime Power(KW) | 160 | insulation | Class H |
| Winding Lead | 12 | Factor | 0.8 |
| Controller | |||
| Brand/Original | Smartgen | Item No. | HGM6120/HGM6110 |
| Diesel Generator Set configuration Table | |||
| configuration One | Configuration Two | Configuration Three | Configuration Four |
| Brush Generator | Brush Generator | Brushless Generator | Brushless Generator |
| Electronic Instrument | Digital Controller | Electronic instrument | Digital Controller |
Original brand engine, low emission, low noise, low fuel consumption, energy efficiency, quality and reliable
Eastern lion choose 100% copper wire, which can be forged, corrosion resisitant, good thermal conducticity, and special skills of conductive super resistance, heat resistance and long service life.
Use the digital intelligent controller Smartgen, simple operation; internal with high water temperature, low oil pressure, over current, over speed four protection function, ensure stable operation
Carefully selected 2 mm stainless steel plate to make high quality case, thickness of the door is much more than 4 cm.
Built-in high-density sound-absorbing cotton, soft and high temperature resistant, high density molecular structure can effectively reduce noise.
Removable top, flexible and convenient.
High quality frosted plastic sprayed material, beautiful and wearable
